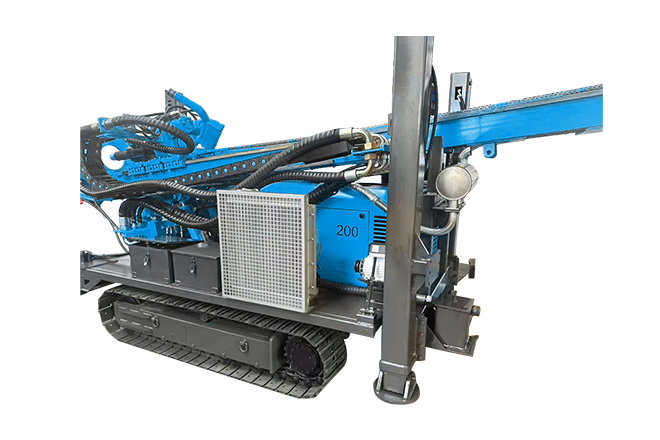

RC200 Reverse Circulation Drilling Rig

 This reverse circulation drilling rig has the following remarkable features and advantages:
Powerful power and performance: The host power is as high as 92kW, which can provide sufficient power support to ensure stable operation under various complex geological conditions. The slewing torque is between 3200 - 6600N.m, which can cope with different hardness formations and achieve efficient drilling. The maximum slewing speed can reach 100rpm, effectively improving the drilling efficiency.
Moderate drilling capacity: The drilling diameter is 140mm, and the drilling depth can reach 200m, which is suitable for a variety of engineering requirements and can be competent for both shallow exploration and resource exploitation at a certain depth.
Good traveling and propulsion performance: The traveling speed is 2.5km/h, which is convenient for quick movement and positioning at the construction site. The single machine climbing ability can reach a maximum of 30°, which can adapt to a certain slope terrain and enhance the operation flexibility of the equipment. The one-time propulsion length is 3500mm, which reduces the time of frequent adjustments and improves the operation efficiency.
Reasonable drill rod configuration: The drill rod diameter is between 89 - 102mm, and the length is 3m, which matches the drilling performance of the whole machine and ensures the stability and reliability of the drilling process.
Stable working air pressure and gas consumption: The working air pressure is between 1.7 - 2.5mpa, and the gas consumption is 17 - 35m³/min, which can not only meet the drilling requirements but also control the energy consumption while ensuring efficiency.
Convenient operation and transportation: The weight of the whole machine is 5800kg, and the overall dimensions are 5800×2000×2300mm. Under the premise of ensuring the performance of the equipment, it has a relatively reasonable volume and weight, which is convenient for transportation and on-site installation and commissioning, reducing the use cost and operation difficulty.
In conclusion, this reverse circulation drilling rig performs excellently in terms of performance, adaptability, and operation convenience, and is an ideal choice for various drilling projects.
